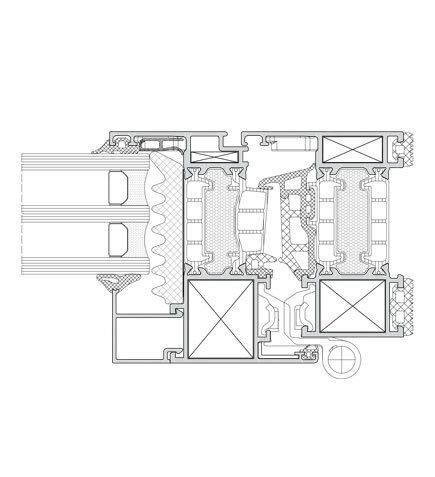

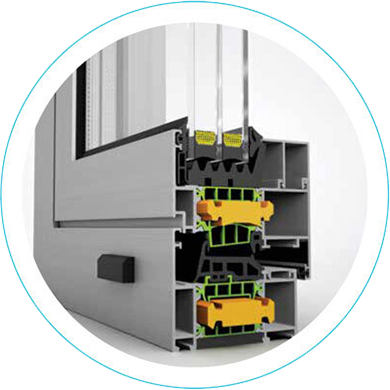

Chassis aluminium E75

Performance

Air Permeability: up to Class 4

Watertightness: up to Class E1500

Resistance to wind load: up to Class C5

Thermal transmittance (Uf): from 1.2 W/(m2K)

Acoustic performance: up to 46 dB

Burglar resistance: up to class RC2

Techniques

Straight line | Glazing infill : up to 55mm in frame

Double & triple glazing option

Frame depth: 75 mm | Vent depth: 84.5 mm

Min. height ( frame+leaf):107 mm

Compatible with curtain wall system

Energy efficiency concepts: Advanced, Improved & Basic

Hardware

Extruded aluminium corners

Eurogroove + PVC groove

Max. vent weight:170 mm

Concealed hinges

Multiple locking points

Surface treatment options

RAL colours

ETEM colours

Anodising

Wood effects

Quality Standards: QUALICOAT | QUALANOD | QUALIDECO
